PMT-35 Manual Photomacrographic System
Introduction
The PMT-35 Manual Photomacrographic System was the largest, heaviest, most comprehensive and most expensive item in the OM system.

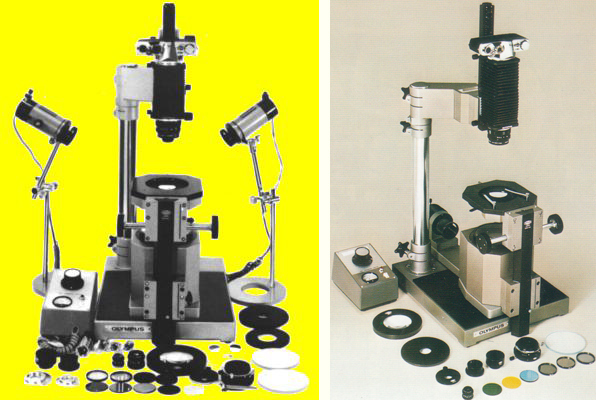

Olympus PMT-35 and PMT-35TA
| US stock no. | 105-043 |
|---|---|
| Introduced | 1972 |
| Discontinued | ? |
| 1979 US price | $3,350.00 |
| 1984 UK price | £2400.00 + VAT |
Versions
Two versions with fewer items were made, PMT-35RA for reflected light only and PMT-35TA for transmitted light only.
Instruction leaflet for PMT-35RA and PMT-35TA
Sales Information File
Summary
The PMT-35 is a complete macro- and microphotographic system for use with the OM System, consisting of 46 units, including the macro lenses and 26 standard units, suitable for transmitted and reflected light.
Its base is a Support Stand similar to the PM-PSS but with a modified arm on which a special bellows is attached.
On the plate there is a special Trans-Illuminator Base with Illuminator attached which can be exchanged with a microscope for precision microphotography.
The PMT-35A, introduced in the early 1980’s is an economized version, available in two different subversions: PMT-35TA and PMT-35RA.
Neither versions include the macro lenses or the Lieberkühn Reflectors.
The PMT-35TA for transmitted light doesn’t include the PM-LSD 2’s; the PMT-35RA for reflected light doesn’t include the Trans-Illuminator Base or Stage Plates.
Main Characteristics
It permits use of transmitted or incident illumination for sharply-focused detail in the entire image field as desired.
The non-standard Auto Bellows allows a magnification range with various macro lenses from 0.45× to 16.5×.
Included with the original PMT-35 are three macro lenses (80mm/F4, 38mm/F3.5 and 20mm/F3.5), two Epi-Illuminators PM-LSD 2, Lieberkühn Reflectors, Stage Plates, Filters, etc.
It also features an optional bellows-mounted vibration-free shutter for high magnification macro- and micro photography. Shutter speed range 1sec~1/500sec, T & B, having M & X flash contacts.
Notes – Related Units
The OM Mount Photomicro Adapter H connects the OM body to the PMT-35.
The Light Shield Tube PM-SDM is a special attachment unit for photomicrography with the PMT-35 equipment.
When the Incident Illuminator Mirror Housing PM-EL-20 is used with the Macro Lens 20mm/F3.5 on the PMT-35, it is recommended to mount the Adapter +0.5× in between the PM-MToB and the lens, to avoid the light path to be obstructed by the bellows rails.
