Olympus OM system close-up and macro equipment
OM-Mount Photomicro Adapter H2 (PM-CAMS2)
Introduction
The OM-Mount Photomicro Adapter H2 fits OM camera bodies but it was not sold as part of the OM system; it was intended for attaching the SC 35 Type 12 camera to Olympus colposcopes and operating microscopes. Some of the Olympus microscope literature refers to it as the PM-CAMS2.
|

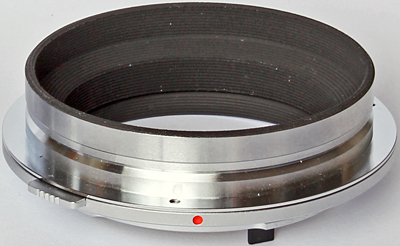

Photomicro Adapter H2 |

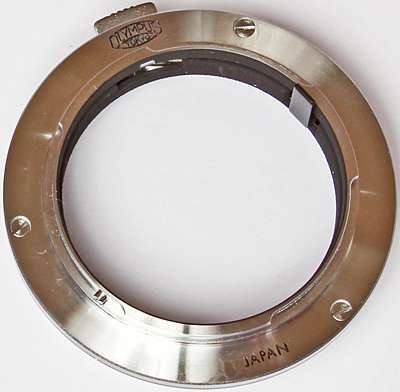

Photomicro Adapter H2 |
Box for Photomicro Adapter H2
The Adapter H2 is included here because it provides a good way of connecting Canon EOS digital SLR cameras to the Auto Bellows. The camera body mount for the Auto Bellows has a long lever with a black plastic cover that clashes with the overhanging pentaprism of Canon EOS digital SLRs. The Adapter H2 has a very short lever that permits unobstructed use of Canon EOS digital SLRs.
The top of the Adapter H2 has the same fitting as the rear of a lens, and attaches to an OM camera body in the normal way. The bottom of the Adapter H2 fits into the rear standard of the Auto Bellows and is locked in place by tightening a screw that fits into the circular groove.
| Weight | 53 gm |
|---|---|
| Microscope ref. | PM-CAMS2 |
| Olympus no. | 7-C535 |
| US stock no. | ? |
| Introduced | ? |
| Discontinued | ? |
Versions
Only one version is known.
Similar adapters
The Photomicro Adapter H2 is similar to, and interchangeable with, two other adapters:
- OM camera body mount provided with the Auto Bellows (long lever with black plastic cover)
- Photomicro Adapter H (medium lever), also known as the PM-CAMS
The significant difference between the Adapter H2 and the similar ones is the length of the lever that you press to release the adapter from camera body. On the Adapter H2, this lever is very short, so when used in conjunction with an adapter for Canon EOS digital SLRs, the lever does not clash with the overhanging pentaprism and there is no need to use an extension tube.
Camera body mount for the Auto Bellows (left) and Photomicro Adapter H2
Side view of camera body mount for the Auto Bellows (left) and Photomicro Adapter H2
Going digital
There are no moving or electrical connections between the Photomicro Adapter H2 (or H) and the Olympus OM camera body, so it is easy to adapt digital camera bodies that are less deep than the OM, and Canon EOS digital SLRs and mirrorless cameras are often used. The most suitable ones are full-frame bodies such as the EOS 5D Mark II, Mark III and Mark IV, the 6D and 6D Mark II, the R8 and the RP, because they have a sensor the same size as 35 mm film.
Olympus OM 35 mm camera bodies and the SC 35 Type 12 scientific camera have a register distance of 46.0 mm from the film plane to the front surface of the mount for lenses. Canon EOS digital SLRs have a corresponding distance of 44.0 mm, and so they need an adapter 2.0 mm thick when they are used to replace an Olympus body. Canon EOS R mirrorless cameras have a corresponding distance of 20.0 mm, and so they need an adapter 26.0 mm thick.
The register distances for many other cameras can be found in Camera Mounts Sorted by Register.
