AC Adapter 3
Introduction
The AC Adapter 3 provides 2 outputs, 230 Volts 200 milliAmps for the T Power Control 1, and 6 Volts 3 Amps for the modelling lights in the T10 Ring Flash 1, T8 Ring Flash 2, T28 Macro Single Flash 1 and the T28 Macro Twin Flash 1.
Olympus OM AC Adapter 3
The plug that provides power for the T-series flashes fits into the socket underneath the T Power Control 1, just above the accessory foot. The plug that provides power for the modelling lights fits into the socket on the rear of the flash head.
| Input |
[U. K.] AC 240V 50/60Hz 30VA or
[Europe] AC 220V 50/60Hz 30VA or
[N. America] AC 110V |
| Input lead |
1850 mm |
| Outputs |
[U. K.] DC 230V 200mA (for T-series flash), DC 6V 3A (for modelling lamps) or
[Europe] DC 230V 200mA (for T-series flash), DC 6V 3A (for modelling lamps) or
[N. America] |
| Output lead |
2830 mm (for T-series flash)
2930 mm (for modelling lights) |
| Output plugs |
Special 3-pin (for T-series flash)
2.1 mm DC power plug (for modelling lamps) |
| Length |
128 mm |
| Width |
65 mm |
| Height |
53 mm |
| US catalog no. |
|
| Introduced |
1980 |
| Discontinued |
|
Versions
There are at least 3 versions, one for use on 110 volts mains supply, one for 220 volts and one for 240 volts.
The version for 110 volts failed the safety tests in the USA, and so was not available there.
Instruction leaflet
Reproduced with permission from the copyright owner, Olympus Optical Co., Ltd
Printed 0482
In the illustration in the original leaflet, the labels for the two output plugs are transposed; this has been corrected in the illustration below.
AC ADAPTER 3
Having 2 output plugs, this adapter operates off AC house current to power the T Power Control 1 and the illuminator built into the T10 Ring Flash 1 (both at the same time or either one). It can also be used to power the Winder 2 (or 1)/Electronic Flash T32 (or T20) combination.
Attention
- Do not use with any apparatus other than those enumerated above.
- Insert each plug firmly into the socket terminal. To remove, hold the plug tightly and pull. Do not pull or strain the cord.
- Do not use the unit for hours on end. Unplug the AC cord when you have finished your work.
- Do not put flammable substances on the unit while in use.
- With flash units: (i) Do not remove the plugs when taking pictures. (ii) When the T10 and Power Control are powered simultaneously, the flash charging time will become longer and the illuminator less bright than when powered separately.
- Do not tamper with terminals, nor let the unit strike against hard objects. If it needs repair, do not try to do it by yourself, but by an Olympus service center.
- Do not use or store in a place exposed to high temperatures, high humidity and splashes.
OLYMPUS
OLYMPUS OPTICAL CO., LTD.
San-Ei Building, 22-2, Nishi Shinjuku 1-chome, Shinjuku-ku, Tokyo, Japan. Tel 03-340-2211
AC Adapter 2
The AC Adapter 2 can be used to provide power for the T Power Control 1, but unlike the AC Adapter 3 it does not also provide a 6 volt DC supply for the modelling lights in the macro flash units.

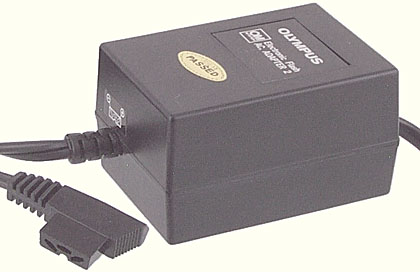

Olympus OM AC Adapter 2
The plug that provides power for the T-series flashes fits into the socket underneath the T Power Control 1, just above the accessory foot.
| Input |
AC 240V 50/60Hz 6W or
AC 220V 50/60Hz 6W or
AC 110V |
| Input lead |
300 mm |
| Output |
DC 200V 10mA |
| Output lead |
1900 mm |
| Output plug |
Special 3-pin, for T-series flash |
| Length |
72 mm |
| Width |
51 mm |
| Height |
41 mm |
| US catalog no. |
|
| Introduced |
|
| Discontinued |
|
The AC Adapter 2 can also be used with the Electronic Flash T32, Electronic Flash T20 and Power Bounce Grip 2.
Versions
There are three versions, one for use on 110 volts mains supply, one for 220 volts and one for 240 volts.
Instruction leaflet
Reproduced with permission from the copyright owner, Olympus Optical Co., Ltd.
« ELECTRONIC FLASH AC ADAPTER 2 »
This AC adapter is designed to enable Olympus electronic flash units (except Quick Auto 310, PS 200 and PS 200 Quick) to operate on house current.
- Do not connect the adapter to an AC wall outlet whose line voltage is other than that indicated on the adapter.
- Insert the adapter’s output plug into the external power socket of the flash unit as far as it will go. The plug cannot be inserted in reverse.
- In TTL AUTO flash operation, do not disconnect the adapter from the AC wall outlet, or the flash unit will emit its full light output.
Recycling time
| |
AUTO |
MANUAL |
| Electronic Flash T20 |
0.5 – 3.5 sec. |
3.5 sec. |
| Electronic Flash T32 |
0.2 – 8 sec. |
8 sec. |
| T10 Ring Flash |
0.2 – 8 sec. |
8 sec. |
OLYMPUS
OLYMPUS OPTICAL CO., LTD.
San-Ei Building, 22-2, Nishi Shinjuku 1-chome, Shinjuku-ku, Tokyo, Japan. Tel. 03-340-2211
|
