Olympus OM system close-up and macro equipment

Macrophoto/Medical Case B

Introduction

Olympus produced 2 fitted aluminium cases to hold a camera and an assortment of equipment. The cases were lockable, made of heavy-gauge aluminium with reinforced corners and edges, and the compartments were lined with royal blue plush. The cases were available empty, and as complete outfits. Both cases were the same depth and height, but Case B was nearly twice as wide as Case A.

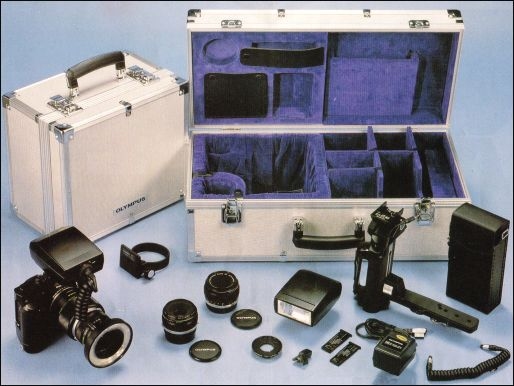

Macrophoto/Medical Case B

Olympus OM Macrophoto/Medical Case B

Features

Weight of case 8 lb 1 oz
Weight of outfit 18 lb 4 oz
Width 20 inches
Depth 10.25 inches
Height 7.75 inches
Body aluminium
Partitions Royal blue plush
US catalog no. 108-471
Introduced
Discontinued
Layout of Macrophoto/Medical Case B
Layout of Case B

Contents of Olympus Scientific Medical System B

Catalog No.Name
101-052Black OM-2N body
103-750Zuiko Auto-Macro 135 mm f/4.5
104-016Telescopic Auto Tube 65–116
106-004Winder 2
107-013T10 Ring Flash 1
107-023T Power Control 1
107-027Ring Cross Filter POL
108-500Eyecup 1
108-904Recordata Back 3
103-720Zuiko Auto-Macro 50 mm f/3.5
103-731Zuiko Auto-1:1 Macro 80 mm f/4
104-004Close-up Lens 80mm Macro f=170 mm
107-051T10 Ring Flash Caculator Panel 80 mm macro
107-052T10 Ring Flash Caculator Panel 135 mm macro
107-017Electronic Flash T32
107-021Bounce Grip 2
107-0256V Power Pack 2
107-026Strap for Bounce Grip
107-066TTL Auto Cord T 0.6 m
107-070M Grip Cord
107-082TTL Auto Connector Type 4 (for TTL Auto Cord T with OM-2N)
108-471Macrophoto/Medical Case B

Instruction leaflet
